ST2327
Mutrade
NEW! – Tilting Car Parking System with Pit for 2 Cars
PROFESSIONAL PARKING SOLUTION PROVIDER!
While the concept of utilizing a pit is commendable, there are instances where ceiling height limitations could pose challenges. Starke 2327 offers an innovative solution by tilting the platforms, thus maximizing space efficiency without sacrificing comfort. With their meticulously crafted design, dependable performance, and user-friendly operation, they offer a practical solution for spaces constrained by limited room. Moreover, boasting a generous capacity of 2700kg, they are well-equipped to accommodate large and heavy vehicles.
- For independent parking
- Superstructural design, self-standing

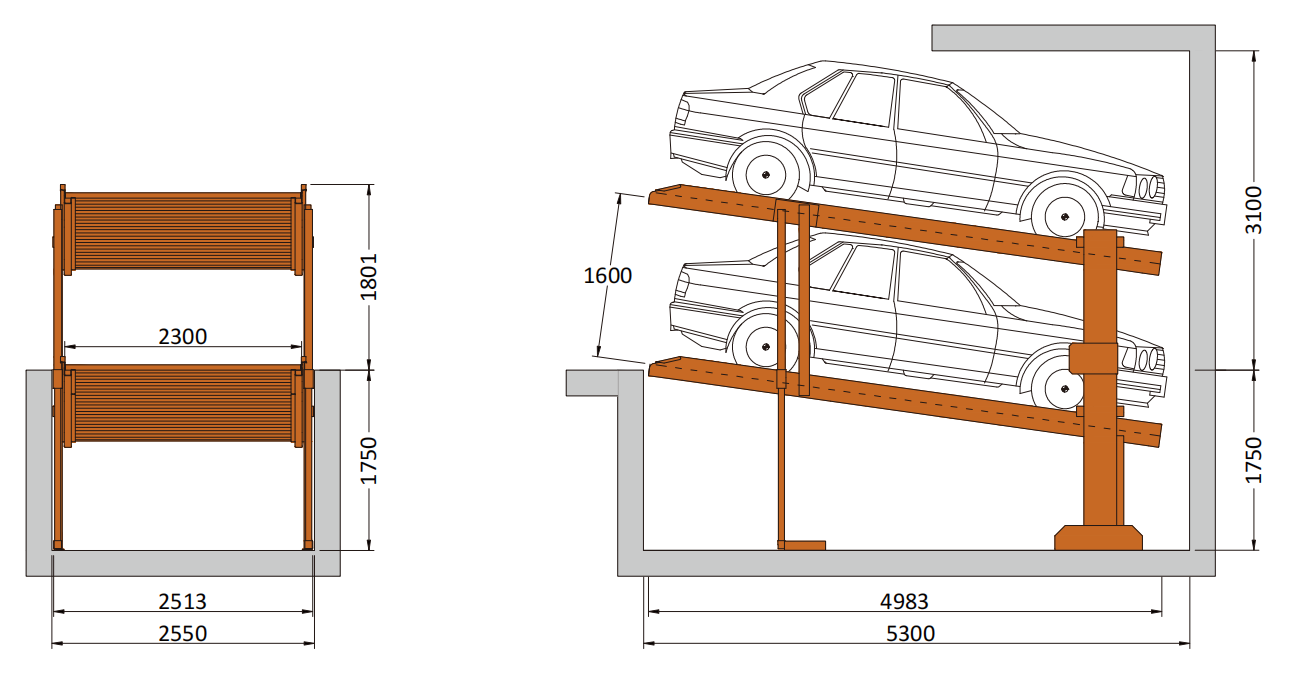

- Reduced installation height, 3100mm only
- Single unit for 2 cars
- Platform load capacity: 2700kg
- Platform width: 2300mm as standard, and up to 2500mm
- Pit width: 2550mm as standard, and up to 2750mm
- Vehicle height in low level: 1550mm
- Inclined access to lower parking level
- Dual hydraulic cylinders drive
- Centralized commercial power pack is optional
- Minimized construction cost
- Steel ropes provide additional protection from falling
- Galvanized platform plates, high heel friendly
- Fine surface coating supported by Akzo Nobel powders
| Model | Starke 2327 |
| Vehicles per unit | 2 |
| Lifting capacity | 2700kg |
| Pit depth | 1750mm |
| Usable width | 2300mm-2500mm |
| Available car height | 1500-1550mm |
| Power pack | 5.5Kw hydraulic pump |
| Available voltage of power supply | 200V-480V, 3 Phase, 50/60Hz |
| Operation mode | Key switch |
| Operation voltage | 24V |
| Finishing | Powdering coating |
New design control system
The operation is simpler, the use is safer, and the failure rate is reduced by 50%.
Gentle metallic touch, excellent surface finishing
After applying AkzoNobel powder, color saturation, weather resistance and its adhesion are significantly enhanced
Galvanized screw bolts based on the European standard
- In garages for private houses or apartment buildings
- For underground car parking lots of office buildings or commercial buildings
- In the inner courtyard, front garden or green spaces of family houses, apartment buildings or commercial buildings
