BDP-5 - Five Level Hydraulic Puzzle Parking System

BDP-5

Five-level Semi-automatic Puzzle Parking System

Introduction

One of the most space-saving puzzle parking system that maximum utilizes every inch of the space. By having one empty space on the ground and all middle floors, all spaces can be accessed directly and independently. The unique design of hydraulic-driven provides super-faster lifting speed comparing to motorized system, thus greatly shorten the waiting time. It can be built in various solutions by adding more grids on the side or back-to-back. Furthermore, options for different platform width, system length, and floor clearances are available to accommodate various vehicle types.

- For independent parking

- Hydraulic driven, super-fast lifting speed

- Above ground installation with 5 parking levels

- Platform load capacity: 2000kg or 2500kg

- Variable arrangements possible, from 3 to 6 grids wide (11 to 26 cars)

- Usable platform width: 2280mm as standard, and up to 2480mm

- Installation height: from 9572mm

- Vehicle size: Length 5000mm, Height 1550mm to 2050mm on request

- Mechanical anti-falling frame

- Multiple electrical safety devices

- Smart operation via ID card or key fob

- Security vertical gate is optional

- Fine finishing of power coating

- Roofing and façade can be added by customer to protect from weather

Specifications

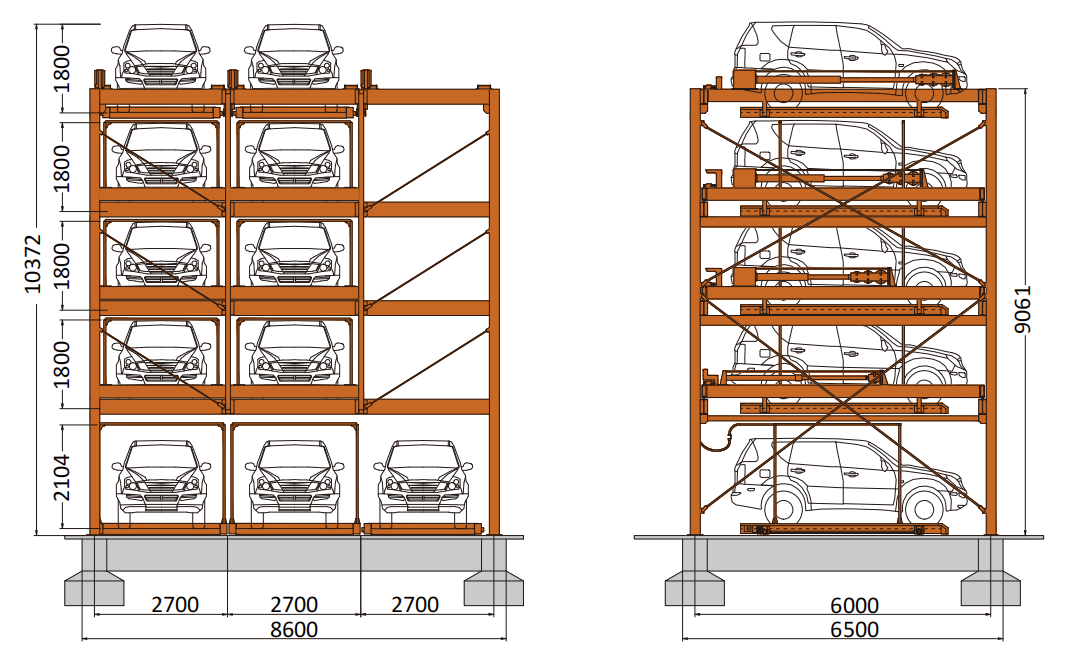

Dimensional Drawing

Design Showcase
