Hydro-Park 7220 - Cantilevel Pit Parking Lift

With our cantilever parking system with pit, we offer the perfect parking solution for two sedans. The magic is that when it comes to convenience and easy access to your parking space, the system offers independent parking. At the same time, the absence of support posts on the sides results in a smaller occupied parking space, providing more space for additional parking spaces, super-wide platform, as well as additional comfort when getting in and out of the car

- For independent parking
- Free car door opening, excellent comfort
- Single unit for 2 cars
- Platform load capacity: 2000kg

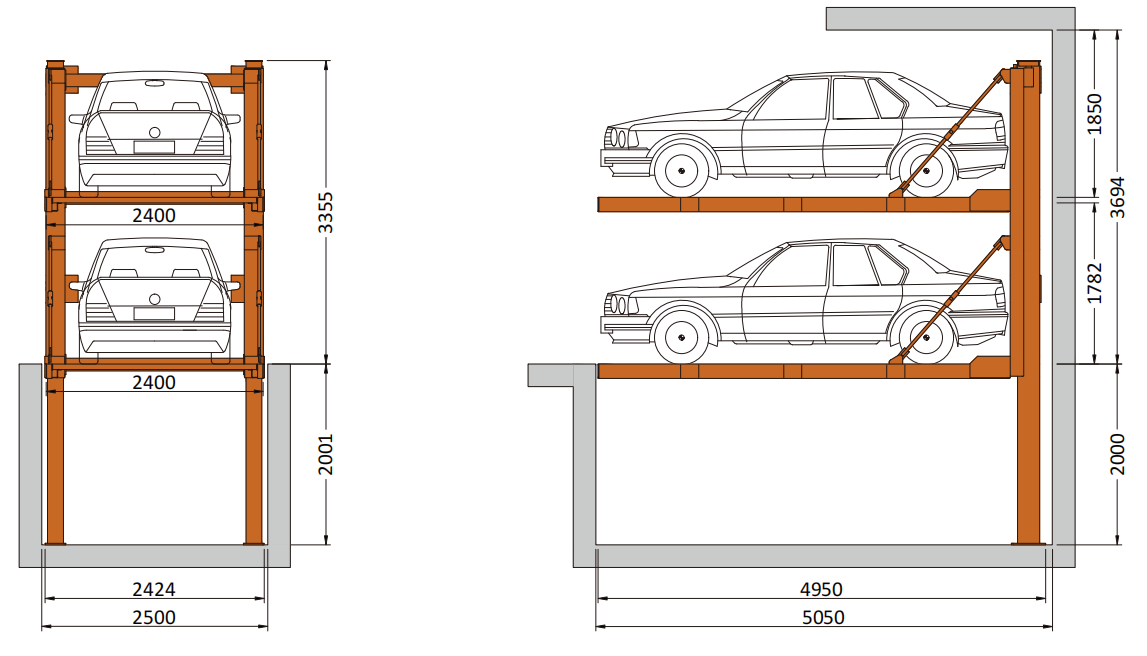

- Platform width: 2400mm as standard, and up to 2600mm
- Pit width: 2500mm as standard, and up to 2700mm
- Pit depth: 2000mm as standard, and variable from
1800mm to 2200mm
- Vehicle height in low level: 1700 as standard
- Dual hydraulic cylinders drive
- Centralized commercial power pack is optional
- Galvanized platform plates, high heel friendly
- Fine surface coating supported by Akzo Nobel powders
